Running Programs on the Hermes Computer

The last section described a language called assembly language that would allow programmers the ability to more easily control the Hermes Computer. Unfortunately Hermes Corp., maker of our computer, has not gotten around to writing their assembler yet. They have only provided a primitive loader which will let you load the machine memory and then start the machine running at some arbitrary place. I called them up and complained, but they told me a pre-release version of the assembler would only be available after a couple of months and that even then it was likely to be pretty unreliable for sometime.

So we will have to make do with what we have. The Hermes loader program translates ASCII versions of commands in a file and loads them into Hermes memory; it then executes the loaded program on the Hermes computer. Each ASCII load file consists of data and instructions on how to load and execute programs and data on the machine. All files are loaded into the same memory and executed together, so later elements with the same load address will overwrite earlier ones if they overlap. The loader accepts a fairly free format, which is defined a little later in the section `Loader Data'.

After loading the memory, the Hermes computer starts executing in the place specified by the loader data.


Hermes Computer Limitations

The machine was ordered with 1 meg of memory but only ¼ meg was actually delivered. The Hermes Corp. says it is having a hard time finding memory.

There is only keyboard input and CRT screen output planned for the machine, but currently even these were not delivered. Again the company is going to do a hardware update in a couple of months and this hardware will then work. Currently the only way to see any computer results is to end the program with a FMCK instruction and examine the register and memory dump for appropriate results.


Additional Hermes Computer Features

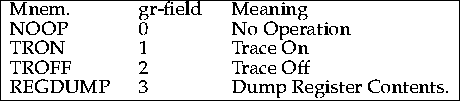

The Hermes machine comes with some additonal operations all of which use op-code 0x7c. Different instructions depend on the value of the gr register field. These instructions include:



Options to the Hermes Memory Loader.

Allowable options on the command line are

A -v invokes the verbose option. Makes the loader list the input files and associates a hex machine address with each line of loaded data.

A -t invokes the trace instruction execution option. This turns the trace function of the machine on prior to execution. Tracing causes information to be output after each executed instruction. The output includes a hex version of the instruction, the value of the general register referred to in the instruction, the effective address computed, the contents of memory at that address if such an address exists, and the condition codes.  If memory or the registers change as a result of the instruction then the new contents are also given.

A -x invokes the extra memory dump before execution option. This causes the contents of memory to be output in hexadecimal, decimal, and text form before the execution of the program.  This provides an easy way to check that the loader loaded what you intended.

Example output from both the -v and -t options used in conjunction with a simple test program is given below.


Hermes Loader Data

The loader uses the first character on a line as a flag to determine the type of data on the line.

Lines that start with white-space or // are comments. Normally these lines are not printed; but if the -v (verbose) option is given then the loader prints both comments and the address and data stored in memory.

Lines that start with L or l contain an address at which to start loading the Hermes machine. This address can be in decimal, octal, or hexadecimal. Decimal numbers are just given as numbers, octal numbers must start with a 0, and hexadecimal numbers must start with 0x.

Lines that start with X or x contain an address at which execution should begin. The address uses the same conventions as load address line.

Lines that start with > contain `words' to be loaded into memory starting at the current load address. After each word is loaded the current load address is incremented by the number of bytes stored. Data words in a load line can be hexadecimal, text, mnemonics, or word constants (in octal, decimal, or hexadecimal). There can be more than one type of word on a single load line. The word `//' on a load line starts a comment that is terminated by the end of line. Load data uses a slightly different convention from L and X lines because most data load data is hexadecimal.

A word that starts with a digit or the small letters `a' to `f' is assumed to be a hexadecimal value to be loaded into memory. Every two characters in a hexadecimal word becomes a single byte. Hexadecimal words should always contain an even number of characters.

A word that starts with a double-quote (") starts a text-word. A text word can contain blanks and it continues until a matching double-quote is found.  Neither the beginning nor the ending double quote is loaded into memory. Characters within the double quotes are loaded one byte per character. A few special two character escape sequences (which represent a single memory character) are available in text words: `\\' represents \, because we need a representation for the back-slash character; `\"' represents double-quote, becasue we need a representation for the text marker character; `\n' represents a new-line, because it difficult to represent otherwise; `\t' represents a tab, because it is difficult to tell if you have one or several blanks; `\r' represents a carriage-return character, because like new-line it is difficult to represent otherwise; ` ' represents a hex 0x00 character, this is commonly used as an end of text marker.

A word that starts with a hash-mark (#) represents a full word (4-memory-byte) value, the # must be immediately followed by a numeric constant in octal (starts with 0), decimal(starts with a digit), or hexadecimal (starts with 0x).

A word that starts with an upper-case letter `A' to `Z' represents a machine mnemonic.  This represents either 1 or 2 bytes of data in the instruction, depending on the mnemonic.  So for example the word LA represents the single byte value 0x0b, the machine op-code equivalent of LA. Whereas a JEQ represents a two byte value 0x3520, this is the machine op-code, 0x35, and the condition mask, 0x20, for the TST instruction.


Small Example of Hermes Loader Input Data

Loader data is written by a programmer and put in a file that the Hermes computer loader will use to load the memory of the machine. The actions of the Hermes computer are completely determined by the data put in the loader file, this is the way a programmer controls the computer.

Here is an example of what a programmer would write and put into a file for the loader to load.


     HERMES TEST PROGRAM
     Load program values
L 0x1000
   loaded value     //  comments
> 0b   10 00 000001 //  LA    1, 1
> 0b   20 00 000002 //  LA    2, 2
> 0b   30 00 000022 //  LA    3, 34
> 08   20 00 002000 //  ST    2, 0x2000
> 10   30 00 002000 //  ADD   3, 0x2000
> 05   40 00 001700 //  L     4, 0x1700
> 05   50 00 001704 //  L     5, 0x1704
> 05   60 00 001708 //  L     6, 0x1708
> L    70 00 00170c //  L     7, 0x170c
> DIV  60 00 001608 //  DIV   6, 0x1608 (by =2=)
> L    80 00 00160c //  L     8, 0x160c
> MUL  80 00 001630 //  MUL   8, 0x1630 (by =12=)
> L    a0 00 001600 //  L    10, 0x1600
> SUB  a0 00 001604 //  SUB  10, 0x1604
> ATOI b0 00 001800 //  ATOI 11, 0x1800
> ITOA b0 00 001810 //  ITOA 11, 0x1810
> FMCK 00 00 000000 //  FMCK

     Load some number values
L 0x1600
> #0x00 #01 #02 00000003
> 00000004 00000005
> 00000006
> 00000007
> 00000008
> 00000009 #012 #11 #12 #13
> #14 #15 #0x10
> #17
> #18

     Load all the byte values
L 0x1700
> 00010203 04050607 08090a0b 0c0d0e0f
> 1011 1213 1415 1617 1819 1a1b 1c1d 1e1f
> 202122232425262728292a2b2c2d2e2f
> 30 31 32 33 34 35 36 37 38 39 3a 3b 3c 3d 3e 3f
> 40 41 42 43 44 45 46 47 48 49 4a 4b 4c 4d 4e 4f
> 50 51 52 53 54 55 56 57 58 59 5a 5b 5c 5d 5e 5f
> 60 61 62 63 64 65 66 67 68 69 6a 6b 6c 6d 6e 6f
> 70 71 72 73 74 75 76 77 78 79 7a 7b 7c 7d 7e 7f
> 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f
> 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f
> a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af
> b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf
> c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf
> d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df
> e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef
> f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff

     Load a string value
L 0x1800
> "1451300"



Example Output from the Hermes Computer

The output caused by the -v flag comes from the loader. The loader tells you where the line was loaded (as a hexadecimal address) followed by a copy of your specification for the line and any comments. If you have put one instruction per line you can use this information to go directly to the dump to examine its memory version. Independent comment and blank lines from the input are also written out.

Following the loader output is the trace output from the execution of the program.  All numbers output in the trace are hexadecimal.

Following the trace output is the a hexadecimal-decimal-text `dump' of the machine registers and memory.  This is caused by an abnormal end to the program.  After normal termination this data would not be printed.

Loader Output caused by the -v flag:

              HERMES TEST PROGRAM
              Load program values
Loading at 0x001000
            loaded value     //  comments
0x001000:  0b   10 00 000001 //  LA    1, 1
0x001006:  LA   20 00 000002 //  LA    2, 2
0x00100c:  LA   30 00 000022 //  LA    3, 34
0x001012:  ST   20 00 002000 //  ST    2, 0x2000
0x001018:  ADD  30 00 002000 //  ADD   3, 0x2000
0x00101e:  L    40 00 001700 //  L     4, 0x1700
0x001024:  05   50 00 001704 //  L     5, 0x1704
0x00102a:  L    60 00 001708 //  L     6, 0x1708
0x001030:  L    70 00 00170c //  L     7, 0x170c
0x001036:  DIV  60 00 001608 //  DIV   6, 0x1608 (by =2=)
0x00103c:  L    80 00 00160c //  L     8, 0x160c
0x001042:  MUL  80 00 001630 //  MUL   8, 0x1630 (by =12=)
0x001048:  L    a0 00 001600 //  L    10, 0x1600
0x00104e:  SUB  a0 00 001604 //  SUB  10, 0x1604
0x001054:  ATOI b0 00 001800 //  ATOI 11, 0x1800
0x00105a:  ITOA b0 00 001810 //  ITOA 11, 0x1810
0x001060:  FMCK 00 00 000000 //  FMCK

              Load some number values
Loading at 0x001600
0x001600:  #0x00 #01 #02 00000003
0x001610:  00000004 00000005
0x001618:  00000006
0x00161c:  00000007
0x001620:  00000008
0x001624:  00000009 #012 #11 #12 #13
0x001638:  #14 #15 #0x10
0x001644:  #17
0x001648:  #18

              Load all the byte values
Loading at 0x001700
0x001700:  00010203 04050607 08090a0b 0c0d0e0f
0x001710:  1011 1213 1415 1617 1819 1a1b 1c1d 1e1f
0x001720:  202122232425262728292a2b2c2d2e2f
0x001730:  30 31 32 33 34 35 36 37 38 39 3a 3b 3c 3d 3e 3f
0x001740:  40 41 42 43 44 45 46 47 48 49 4a 4b 4c 4d 4e 4f
0x001750:  50 51 52 53 54 55 56 57 58 59 5a 5b 5c 5d 5e 5f
0x001760:  60 61 62 63 64 65 66 67 68 69 6a 6b 6c 6d 6e 6f
0x001770:  70 71 72 73 74 75 76 77 78 79 7a 7b 7c 7d 7e 7f
0x001780:  80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f
0x001790:  90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f
0x0017a0:  a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af
0x0017b0:  b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf
0x0017c0:  c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf
0x0017d0:  d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df
0x0017e0:  e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef
0x0017f0:  f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff

              Load a string value
Loading at 0x001800
0x001800:  "1451300"

Execution started at 001000

Trace output caused by the -t flag:
adddress  instruction   effective mem    (gr)          changed  condition
                        address contents    contents   to       code
001000: 0b-01-00-000001 [000001]00000000 (1)00000000-->00000001 CCr=2
001006: 0b-02-00-000002 [000002]00000000 (2)00000000-->00000002 CCr=2
00100c: 0b-03-00-000022 [000022]00000000 (3)00000000-->00000022 CCr=2
001012: 08-02-00-002000 [002000]00000000-->00000002 (2)00000002 CCr=2
001018: 10-03-00-002000 [002000]00000002 (3)00000022-->00000024 CCr=1
00101e: 05-04-00-001700 [001700]00010203 (4)00000000-->00010203 CCr=1
001024: 05-05-00-001704 [001704]04050607 (5)00000000-->04050607 CCr=1
00102a: 05-06-00-001708 [001708]08090a0b (6)00000000-->08090a0b CCr=1
001030: 05-07-00-00170c [00170c]0c0d0e0f (7)00000000-->0c0d0e0f CCr=1
001036: 13-06-00-001608 [001608]00000002 (6)08090a0b-->06068707 CCr=1
                                         (7)0c0d0e0f-->00000001
00103c: 05-08-00-00160c [00160c]00000003 (8)00000000-->00000003 CCr=1
001042: 12-08-00-001630 [001630]0000000c (8)00000003-->00000000 CCr=2
                                         (9)00000000-->00000024
001048: 05-0a-00-001600 [001600]00000000 (a)00000000-->00000000 CCr=2
00104e: 11-0a-00-001604 [001604]00000001 (a)00000000-->ffffffff CCr=4
001054: 32-0b-00-001800 [001800]31343531 (b)00000000-->00162524 CCr=1
                          "1451300     "
00105a: 31-0b-00-001810 [001810]00000000-->2b303030 (b)00162524 CCr=1
                                        -->"+00001451300"
001060: 00-00-00-000000 [000000]00000000 (0)00000000-->00000000 CCr=1

Output caused by the Abnormal Termination of the program.

Hermes machine stopped after 60 machine cycles.
FMCK instruction stopped Hermes.
Status Reg: 0x10001066

Regs  0 to  3  0x00000000  0x00000001  0x00000002  0x00000024
                        0           1           2          36
                   "...."      "...."      "...."      "...$"

Regs  4 to  7  0x00010203  0x04050607  0x06068707  0x00000001
                    66051    67438087   101091079           1
                   "...."      "...."      "...."      "...."

Regs  8 to 11  0x00000000  0x00000024  0xffffffff  0x00162524
                        0          36          -1     1451300
                   "...."      "...                         "

Regs 12 to 15  0x00000000  0x00000000  0x00000000  0x00000000
                        0           0           0           0
                   "...."      "...."      "...."      "...."


Hermes Memory (0.25 megabyte machine; last address: 0x03ffff):

Address      Values in hexadecimal                           Values as text
             Value  of 4 byte word in decimal
0x000000:    00000000    00000000 |    00256225    03327103 .........%b%.2q.
                    0           0 |     2449957    53637379

0x000010:    00000000    00000000 |    00000000    00000000 ................
                    0           0 |           0           0

254 lines same as above

0x001000:    0b100000    00010b20 |    00000002    0b300000 ....... .....0..
            185597952       68384 |           2   187695104

0x001010:    00220820    00002000 |    10300000    20000540 .". .. ..0.. ..@
              2230304        8192 |   271581184   536872256

0x001020:    00001700    05500000 |    17040560    00001708 .....P.....`....
                 5888    89128960 |   386139488        5896

0x001030:    05700000    170c1360 |    00001608    05800000 .p.....`........
             91226112   386667360 |        5640    92274688

0x001040:    160c1280    00001630 |    05a00000    160011a0 .......0........
            369889920        5680 |    94371840   369103264

0x001050:    00001604    32b00000 |    180031b0    00001810 ....2.....1.....
                 5636   850395136 |   402665904        6160

0x001060:    00000000    00000000 |    00000000    00000000 ................
                    0           0 |           0           0

89 lines same as above

0x001600:    00000000    00000001 |    00000002    00000003 ................
                    0           1 |           2           3

0x001610:    00000004    00000005 |    00000006    00000007 ................
                    4           5 |           6           7

0x001620:    00000008    00000009 |    0000000a    0000000b ................
                    8           9 |          10          11

0x001630:    0000000c    0000000d |    0000000e    0000000f ................
                   12          13 |          14          15

0x001640:    00000010    00000011 |    00000012    00000000 ................
                   16          17 |          18           0

0x001650:    00000000    00000000 |    00000000    00000000 ................
                    0           0 |           0           0

10 lines same as above

0x001700:    00010203    04050607 |    08090a0b    0c0d0e0f ................
                66051    67438087 |   134810123   202182159

0x001710:    10111213    14151617 |    18191a1b    1c1d1e1f ................
            269554195   336926231 |   404298267   471670303

0x001720:    20212223    24252627 |    28292a2b    2c2d2e2f  !"#$%&'()*+,-./
            539042339   606414375 |   673786411   741158447

0x001730:    30313233    34353637 |    38393a3b    3c3d3e3f 0123456789:;<=>?
            808530483   875902519 |   943274555  1010646591

0x001740:    40414243    44454647 |    48494a4b    4c4d4e4f @ABCDEFGHIJKLMNO
           1078018627  1145390663 |  1212762699  1280134735

0x001750:    50515253    54555657 |    58595a5b    5c5d5e5f PQRSTUVWXYZ[\]^_
           1347506771  1414878807 |  1482250843  1549622879

0x001760:    60616263    64656667 |    68696a6b    6c6d6e6f `abcdefghijklmno
           1616994915  1684366951 |  1751738987  1819111023

0x001770:    70717273    74757677 |    78797a7b    7c7d7e7f pqrstuvwxyz{|} .
           1886483059  1953855095 |  2021227131  2088599167

0x001780:    80818283    84858687 |    88898a8b    8c8d8e8f ................
          -2138996093 -2071624057 | -2004252021 -1936879985

0x001790:    90919293    94959697 |    98999a9b    9c9d9e9f ................
          -1869507949 -1802135913 | -1734763877 -1667391841

0x0017a0:    a0a1a2a3    a4a5a6a7 |    a8a9aaab    acadaeaf ................
          -1600019805 -1532647769 | -1465275733 -1397903697

0x0017b0:    b0b1b2b3    b4b5b6b7 |    b8b9babb    bcbdbebf ................
          -1330531661 -1263159625 | -1195787589 -1128415553

0x0017c0:    c0c1c2c3    c4c5c6c7 |    c8c9cacb    cccdcecf ................
          -1061043517  -993671481 |  -926299445  -858927409

0x0017d0:    d0d1d2d3    d4d5d6d7 |    d8d9dadb    dcdddedf ................
           -791555373  -724183337 |  -656811301  -589439265

0x0017e0:    e0e1e2e3    e4e5e6e7 |    e8e9eaeb    ecedeeef ................
           -522067229  -454695193 |  -387323157  -319951121

0x0017f0:    f0f1f2f3    f4f5f6f7 |    f8f9fafb    fcfdfeff ................
           -252579085  -185207049 |  -117835013   -50462977

0x001800:    31343531    33303000 |    00000000    00000000 1451300.........
            825505073   858796032 |           0           0

0x001810:    2b303030    30313435 |    31333030    00000000 +00001451300....
            724578352   808530997 |   825438256           0

0x001820:    00000000    00000000 |    00000000    00000000 ................
                    0           0 |           0           0

125 lines same as above

0x002000:    00000002    00000000 |    00000000    00000000 ................
                    2           0 |           0           0

0x002010:    00000000    00000000 |    00000000    00000000 ................
                    0           0 |           0           0

rest of memory same as above.









Prior Page     Next Page     This Chapter    Prior Chapter    Next Chapter


Copyright © 1995 R. Uzgalis. All rights reserved.
Contact: buz@cs.aukuni.ac.nz
